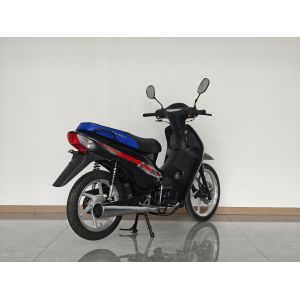

    Buy cheap Front And Rear Aluminum Wheels CUB Motorcycle With Ordinary Mechanical Instruments from wholesalers

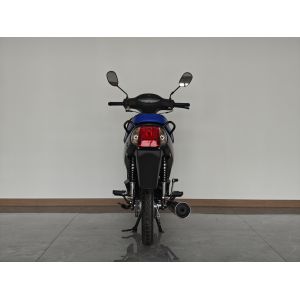

    Buy cheap Front And Rear Aluminum Wheels CUB Motorcycle With Ordinary Mechanical Instruments from wholesalers

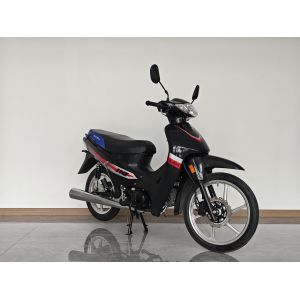

    • Buy cheap Front And Rear Aluminum Wheels CUB Motorcycle With Ordinary Mechanical Instruments from wholesalers
    • Buy cheap Front And Rear Aluminum Wheels CUB Motorcycle With Ordinary Mechanical Instruments from wholesalers
    • Buy cheap Front And Rear Aluminum Wheels CUB Motorcycle With Ordinary Mechanical Instruments from wholesalers
    • Buy cheap Front And Rear Aluminum Wheels CUB Motorcycle With Ordinary Mechanical Instruments from wholesalers
    • Buy cheap Front And Rear Aluminum Wheels CUB Motorcycle With Ordinary Mechanical Instruments from wholesalers
    • Buy cheap Front And Rear Aluminum Wheels CUB Motorcycle With Ordinary Mechanical Instruments from wholesalers
    • Buy cheap Front And Rear Aluminum Wheels CUB Motorcycle With Ordinary Mechanical Instruments from wholesalers
    • Buy cheap Front And Rear Aluminum Wheels CUB Motorcycle With Ordinary Mechanical Instruments from wholesalers

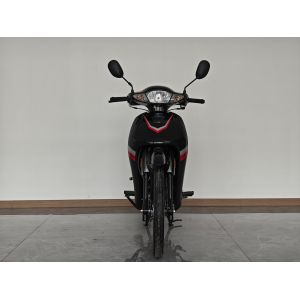

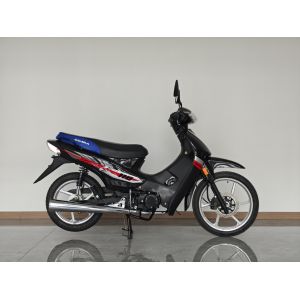

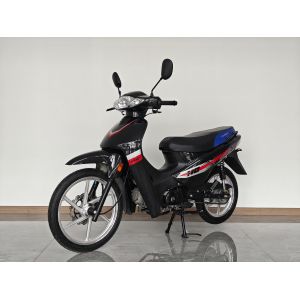

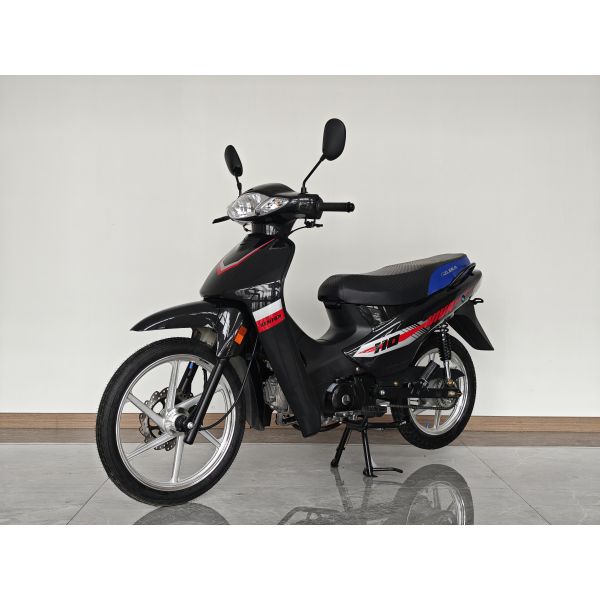

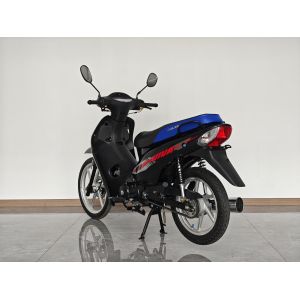

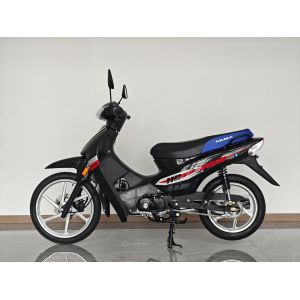

    Front And Rear Aluminum Wheels CUB Motorcycle With Ordinary Mechanical Instruments

    Ask Lasest Price
    Brand Name : OEM
    Model Number : YH110T-1
    Price : Negotiable
    Payment Terms :
    Delivery Time : 45 work days
    Supply Ability : Customized
    Certification :
    • Product Details
    • Company Profile

    Front And Rear Aluminum Wheels CUB Motorcycle With Ordinary Mechanical Instruments

    Description:

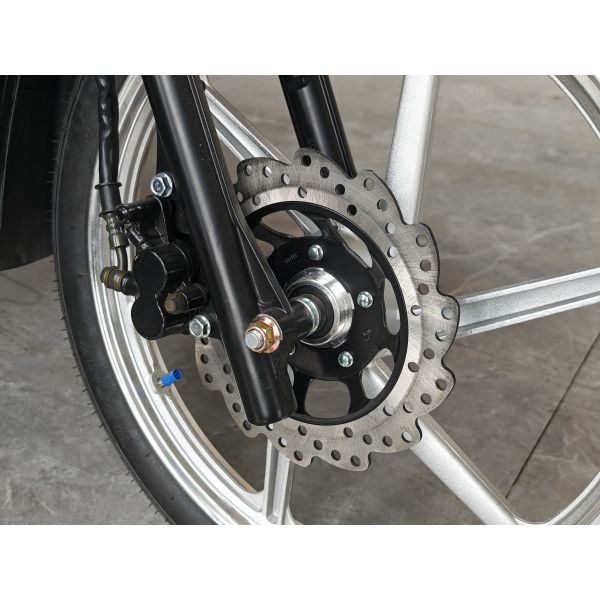

    Horizontal 110CC power, international cycle gear, Youli Keihin carburetor, maintenance-free battery, front disc brake, rear drum brake, front and rear double shock absorbers, front and rear aluminum wheels, ordinary mechanical instruments, Kowloon road tires.


    Specifications:

    ItemParameter
    Dimensions (Length x Width x Height)1860×700×1050mm
    Seat Height750mm
    Wheelbase1070mm
    Minimum Ground Clearance140mm
    Maximum Load150kg
    Steering Angle40
    Side Stand Tilt Angle13
    Ride Capacity2 Person
    Dry Weight92kg
    Fuel Tank Capacity3.1L
    Front Braking SystemDisc brakes
    Rear Braking SystemDrum brakes
    Front Tire Size2.50-17
    Rear Tire Size100/80-14
    Battery Size12V/5Ah
    Engine TypeSingle cylinder, air-cooled, four-stroke
    Engine displacement106.7
    Bore x stroke52.4×49.5
    Compression ratio9.1:1
    Maximum power5.1/8000(kW/r/min)
    Maximum torque7.2/5000(N·m/r/min)
    Maximum speed75km/h
    Start-up acceleration15S
    Overtaking acceleration14S
    Lubrication methodPressure, Splash
    Oil volume1.0L
    Clutch typeMulti-plate wet clutch, automatic
    Ignition methodCDI
    Spark plugA7TC
    Starting methodElectric kick starter
    Transmission methodChain drive
    Final gear ratio14:36


    Frequently Asked Questions:


    Q1. About us:

    A: Jiangmen Songfeng Import and Export Co., Ltd. is the export arm of our manufacturing facility, Yuanhua Technology Co., Ltd. We provide factory-direct pricing and strict quality control, ensuring you receive competitive products straight from the source.

    Q2. Payment Terms:

    A: We require 30% deposit to begin production preparation, with the remaining 70% due upon completion before loading.

    Q3. Delivery Timeline:

    A: Depending on the order quantity, usually around 45 working days

    Q4. Customization:

    A: We can meet OEM requirements and, with the customer's authorization, use the customer's brand. Displacement and other configurations can be modified upon request.

    Q5. Packaging Parameters:

    A: The size of SKD is 1700×770×840mm, and a 40HQ container can hold 126 units.

    The size of CKD is 1230×690×380mm, and a 40HQ container can hold 182 units.

    Q6. Minimum Order Quantity:

    A: We usually recommend MOQ a 40HQ, which can be mixed with different complete motorcycles and spare parts. For the first order of small quantity, a quantity of 20GP is also acceptable. Appreciate your understanding that we do not handle retail exports.

    Q7. After-sales Service:

    We provide 24-hour online support to resolve quality issues at any time and guarantee the supply of all original spare parts to ensure your worry-free after-sales experience.
